Tape Conductors COBCT

Tape Conductors COBCT

PVC & Lead Covered Products

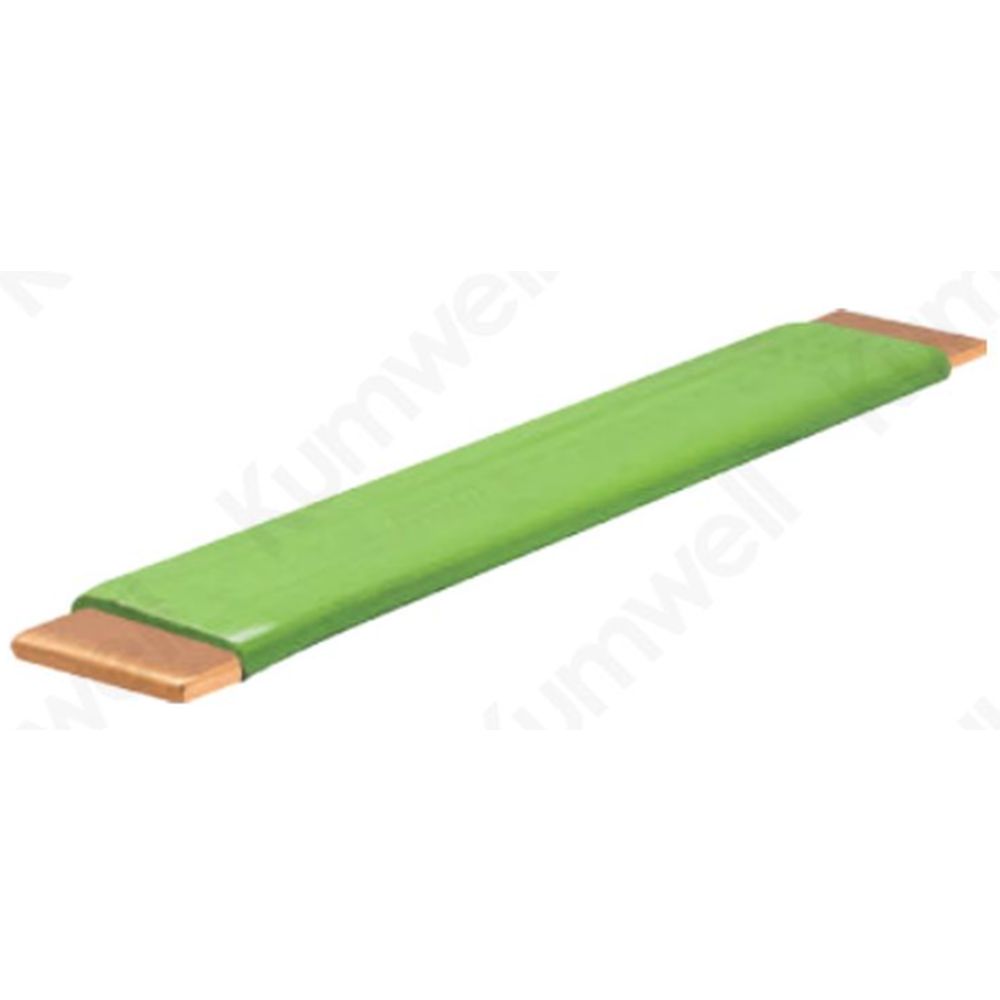

Copper with PVC

Code No.	Size (mm)	Coil Size (m)	Weight (kg/m)
COBCT 253P	25×3	50	0.76
COBCT 256P	25×6	25	1.44
COBCT 253P-LSHF	25×3	50	0.81
COBCT 256P-LSHF	25×6	25	1.49

Material	High conductivity copper – BS EN 13601 Green PVC cover with low smoke halogen free (LSHF)
Tested Standard	IEC 62561 Part 2 TIS 3024 Part 2
Application	Shall be used in down conductor system. Suitable for typical installation.

Aluminium with PVC

Code No.	Size (mm)	Coil Size (m)	Weight (kg/m)
COBAT 253P	25×3	50	0.26
COBAT 254P	25×4	50	0.36
COBAT 253P-LSHF	25×3	50	0.34
COBAT 254P-LSHF	25×4	50	0.41

Material	Aluminium tape – BS 2898 Green PVC cover with low smoke halogen free (LSHF)
Tested Standard	IEC 62561 Part 2 TIS 3024 Part 2
Application	Shall be used in down conductor system. Suitable for typical installation.

Copper with Lead

Code No.	Size (mm)	Coil Size (m)	Lead-Cover Thickness (m)	Weight (kg/m)
COBCTL 253	25×3	25	2	2.21
COBCTL 506	50×6	20	2	5.57

Material	Copper with Lead (Copper – BS EN 13601)
Tested Standard	IEC 62561 Part 2 TIS 3024 Part 2
Application	Shall be used in down conductor system. Shall not be embedded in ground. Suitable for Oil & gas industrial area.

Tinned Copper with Lead

Code No.	Size (mm)	Coil Size (m)	Lead-Cover Thickness (m)	Weight (kg/m)
COBCTL 506T	50×6	25	2	5.57

Material	Tinned Copper with Lead (Copper – BS EN 13601)
Tested Standard	IEC 62561 Part 2 TIS 3024 Part 2
Application	Shall be used in down conductor system. Shall not be embedded in ground. Suitable for Oil & gas industrial area especially in high salty or acidity environment.
