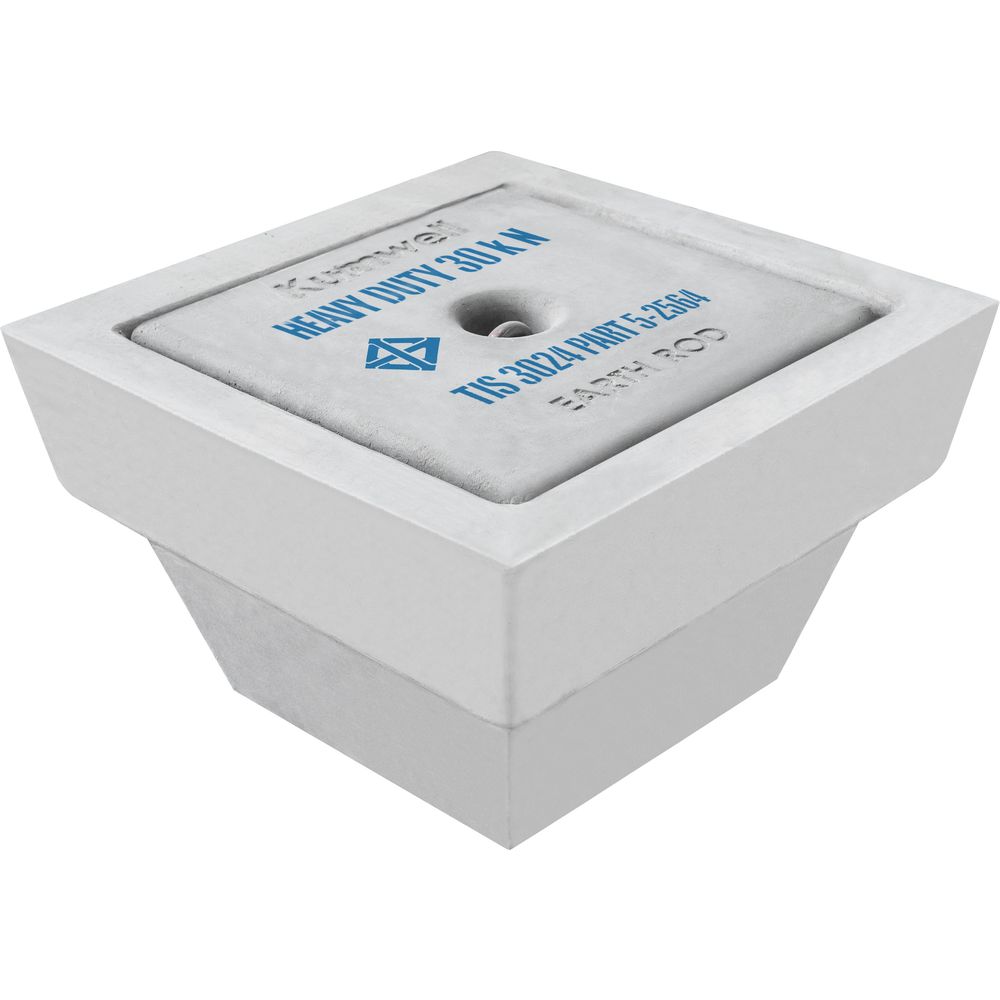

Concrete Inspection Pit – Standard Type

Standard Type

Code No.	Dimensions (mm)			Weight (kg)
	L	W	H
GXCIP	310	310	192	215

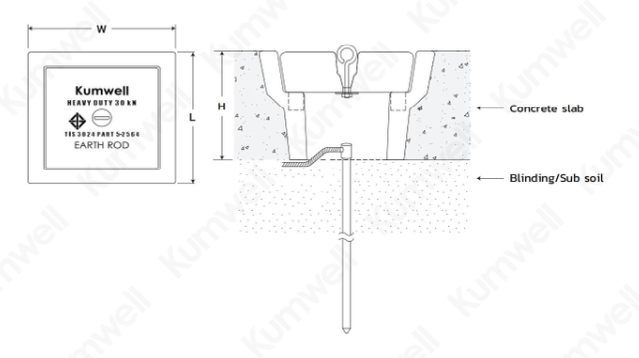

Standard Type 產品示意圖

Material	Concrete
Tested Standard	IEC 62561 Part 5 – Heavy Duty Type TIS 3024 Part 5 – Heavy Duty Type
Application	Inspection and testing point in grounding system. Provide high compressive strength up to 60,000 N (6,000 kg).
Certified Mark	TIS
